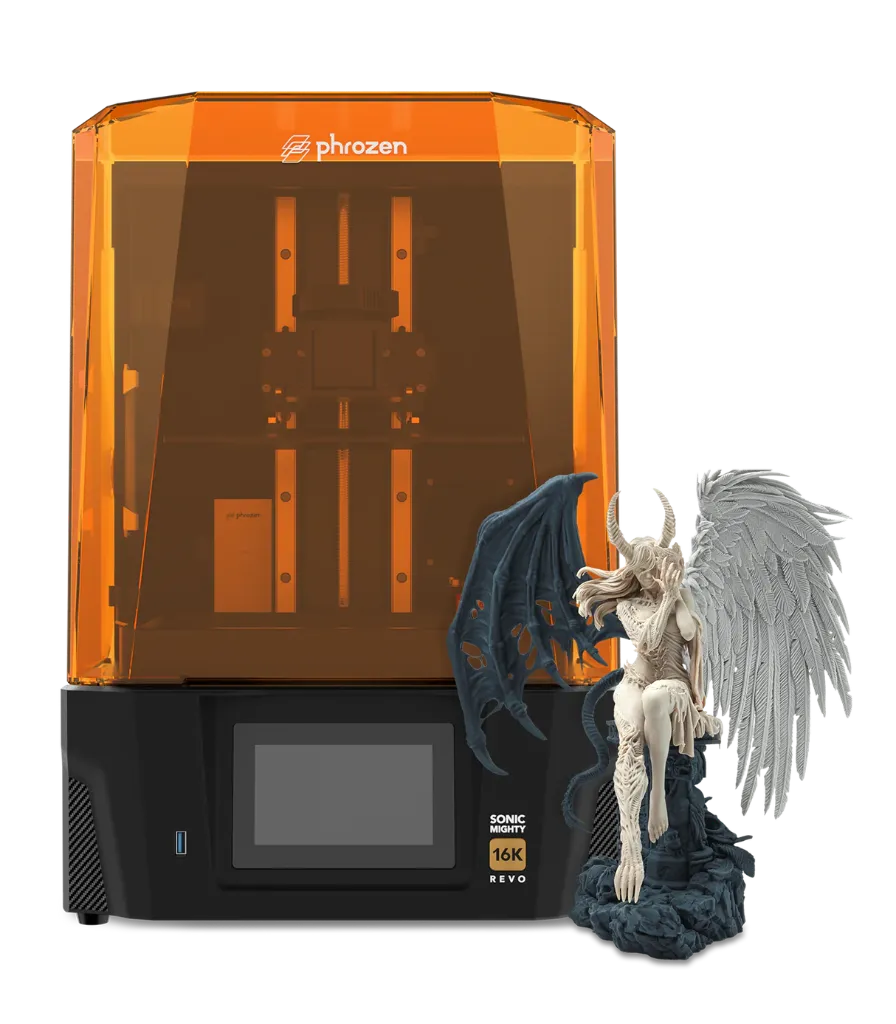

Phrozen Sonic Mighty 16K Revo
16K ultimate high resolution: details fine to 0.02 mm level, nearly finished right after printing.
The wing texture, facial expressions, and armour engravings of a 28mm wargaming model are clearly visible right out of the printer, significantly reducing post-processing and sanding time.
10.1 inch 16K LCD (15120×6230), balancing large size and high precision within a forming space of 211.68×118.37×235 mm.
2,000+ hours LCD designed for high-frequency use.
Brand new upgraded LCD, high light transmission, high heat resistance, and better uniformity. 2,000+ hours stable lifespan, calculated at 8 hours of printing per day, can be used continuously for over 8 months.
Ready for delivery right after printing, saving 90% of sanding time.
The layer lines of the finished product are so fine they are invisible to the naked eye, ready to use right after printing. When magnified, the layer lines of the 16K model are almost invisible.
14K vs 16K comparison
Pixel area reduced by about 36% (16.8×24.8μm → 14×19μm). Finer, smoother, and sharper edges for miniature models.
A great assistant for studio printing output, immediately reports any issues.
Built-in 30°C constant temperature heating + multi-point pressure sensing module, monitoring the printing process throughout.
Industrial-grade aerospace aluminium alloy body - durable and exceptionally stable.
Dual linear guide rails + ball screw + 6000 aerospace-grade aluminium alloy. Over 12 hours of continuous printing maintains sub-micron Z-axis accuracy. High and heavy parts can also be printed accurately layer by layer, significantly reducing the risk of offset.
Preheat for 30 minutes, maintain temperature at 30°C for printing
Built-in heater warms up to 30°C in 30 minutes. Maintains temperature curing, preventing print failures in garages, basements, and winter environments.
Built-in fan heater, circulating temperature control, providing optimal printing conditions
Smart protection, safe printing
Assisted leveling, easy to use
Simplified calibration process, allowing beginners to start printing quickly.
Foreign object detection (≥4mm)
Sensor detects foreign objects ≥4mm, automatically pauses to avoid damaging the release film.* *Sensor detects objects ≥4mm.
Model detachment alarm (15 layers)
Notification triggered when there is zero peel force for 15 consecutive layers.** **Triggered when the peel force is zero for 15 consecutive layers and the print platform is no longer submerged in resin.
Product specifications
Print size
W 211.68 x D 118.37 x H 235 mm
Print speed
Average 450 layers/hour
XY resolution
14 x 19 μm
Layer thickness
0.01-0.20 mm
Technical specifications
LCD
Light source design
Linear projection LED module
LCD panel
10.1" 16K Mono LCD (15120 x 6230 pixels)
Machine system
Phrozen OS
Control panel
5 inch touch screen
Slicing software
CHITUBOX V1.9.6 or above (or other software)
File format
.CTB/.PRZ
File transfer
USB | Ethernet | Wi-Fi
Machine dimensions
W 353 x D 345 x H 517 mm
Machine weight
18 kg
Applicable voltage
AC 100-240V ; 50/60Hz
Power consumption
240 W
Z-axis screw
Dual linear guide (ball screw)
Equipped with release film
nFEP release film
Built-in storage space
8.0 GB
Choose Revo16K if you:
*Need to print tall items (busts, helmets, large scenes) -- 235mm forming height is 15mm more than 220mm, no cutting, direct output
*Value long-term body stability -- 6000 aerospace-grade aluminium alloy, 50,000+ users validated Mighty platform for three years
*Operate a multi-machine studio -- Phrozen G0 one app to instantly track the printing progress of each machine
*Already in the Phrozen ecosystem (resin, accessories, GOApp) - seamless upgrade, files fully compatible
