Product Description
If you are a printing studio or a creator with a high demand for printing, wanting to balance efficiency and quality,

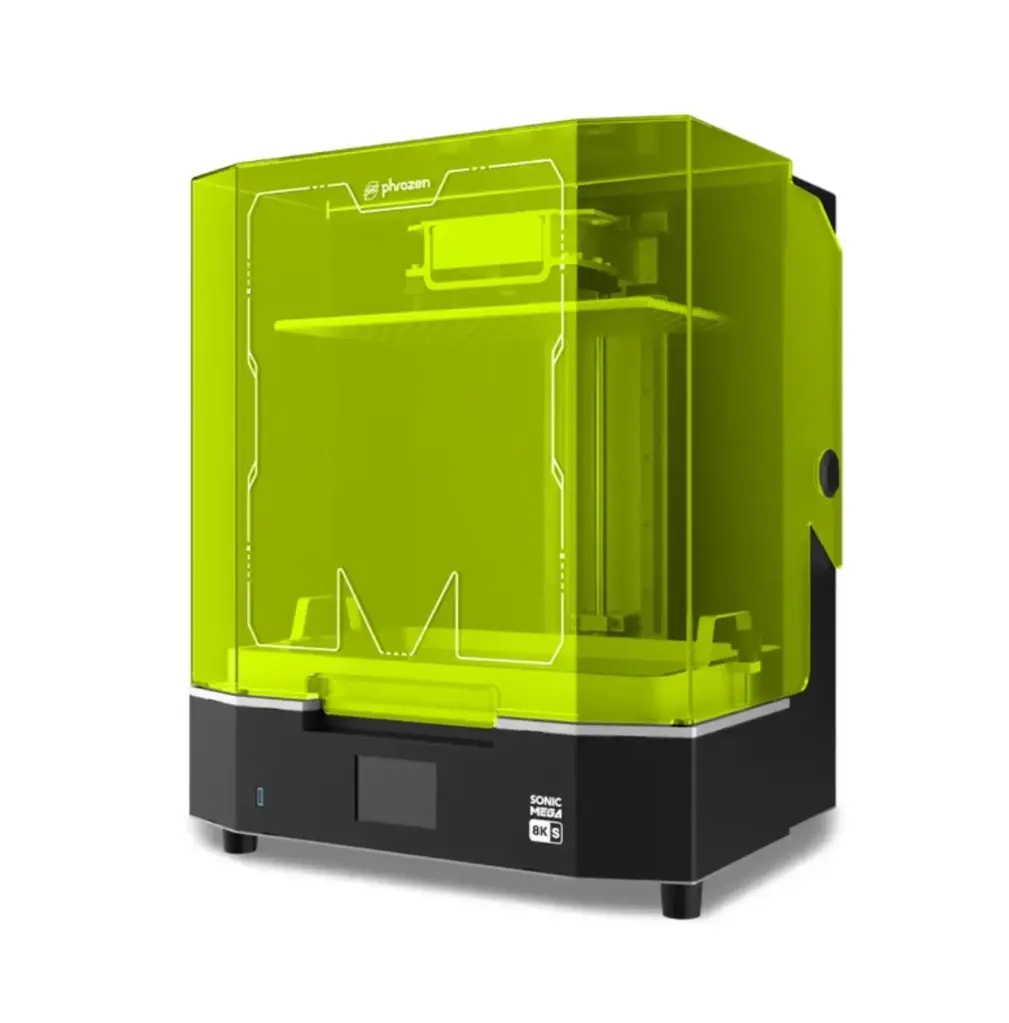

then you absolutely cannot miss the upcoming Sonic Mega 8K S from Phrozen, a fast and high-quality production tool tailored for creators and studios!
Product Features
The Sonic Mega 8K S will significantly increase your production efficiency by 10 times! How is this achieved?
✅ New High-Speed Printing System
✅ 8K LCD Panel - 43µm Ultra High Resolution, perfect detail presentation
✅ 15-inch Large Printing Platform, full plate printing success in one go
✅ ACF Release Film, easily solves the pulling force problem
80 models, completed in 1.5 hours
The Sonic Mega 8K S is equipped with a 15-inch large printing platform, easily completing 80 1/32 scale models in 1.5 hours, achieving rapid high efficiency in mass production!
Integrated Lift-Up Light Shield
Completely Upgraded
The integrated lift-up light shield not only greatly reduces the working space but also makes it more convenient to take models.
Original Equipment
Required more space to open the light shield, and could potentially collide with the platform or models being printed.
Built-in Platform Hook
Completely Upgraded
New platform hook, made of all-metal for safety and stability, allows for simultaneous resin recovery and platform cleaning.
Original Equipment
Removing the platform after printing causes resin to drip everywhere, leading to a messy space and resin waste.
The most complete and efficient 3D printing mass production process
(The following products* are sold separately)
Key elements that significantly enhance production efficiency from printing to post-cleaning curing
.
Phrozen Wash Mega S: Post-Processing Cleaning Machine*
25-litre large capacity cleaning machine, equipped with dual turbines and side water outlet valve, making cleaning large models time-saving and effortless.
Phrozen Cure Mega S: UV Post-Curing Lamp*
Ø35 x 30 cm large capacity curing space, equipped with dual fans, drying and curing solved in one go, greatly improving efficiency.
Phrozen Automatic Resin Injector*
Comprehensively enhances your printing process, solving the problem of insufficient resin leading to print failures, allowing for worry-free mass printing.
Product Specifications
Operating System: Phrozen OS
Control Panel: 3.5-inch Touch Screen
Slicing Software: CHITUBOX V1.9.6 (Others)
File Transfer Mode: Front USB Port
Technical Specifications: UV Curing 3D Printer
Light Source Design: 405nm Wavelength LED Parallel Matrix Light Source
Equipped with Release Film: ACF Release Film
XY Resolution: 43 Microns
Layer Thickness: 0.01-0.30 Millimetres
Average printing speed: 600 layers / hour
Applicable voltage: AC100-240V; 50-60Hz
Power consumption: Maximum 240W
Machine dimensions: 47.2 x 38 x 56.6 cm
Printing dimensions: 33 x 18.5 x 30 cm
Machine weight: 26 kg
