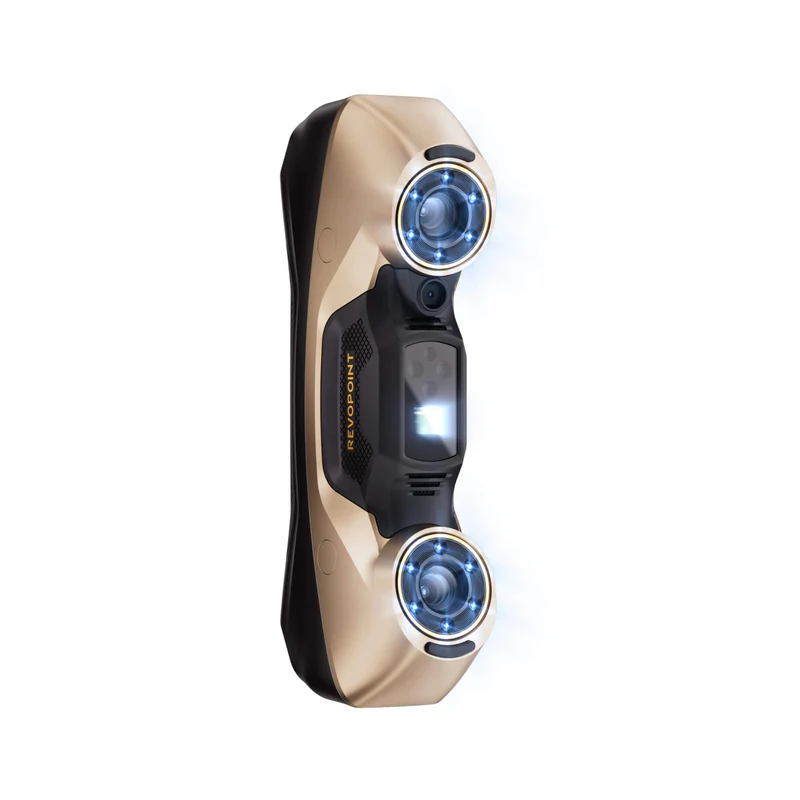

Revopoint MetroY Ultra
MetroY Ultra Specifications
Name | MetroY Ultra |
Scanning Type | Handheld and Desktop |
Technology | Multi-line Laser Scan and Full-field Structured Light Scan |
Scannable Object Size | Small to Medium |
Single-frame Precision, up to* | 0.01 mm |
Single-frame Accuracy, up to* | 0.015 mm |
Volumetric Accuracy | 0.015 mm + 0.04 mm × L (m), L is the length of the object. |
Fused Point Distance, up to | 0.05 mm |
Working Distance | 200 ~ 400 mm |
Single Capture Area at Nearest Distance | 152 × 138 mm at 200 mm |
Single Capture Area at Furthest Distance | 332 × 276 mm at 400 mm |
Angular Field of View (H × V) | 49 × 38° |
Minimum Scan Volume | 10 × 10 × 10 mm |
Maximum Scan Volume | 2 × 2 × 2 m |
Scanning Speed, up to | NVIDIA GPU: 90 fps CPU: 60 fps |
Point Return Rate | Multi-line Laser Scan: 3,000,000 Points/s Full-field Structured Light Scan: 7,000,000 Points/s |
RGB Camera Resolution | 2 Megapixels |
Color Scanning | Only in Auto Turntable Mode and Laser Line Marker Mode |
Tracking Methods | Marker, Global Marker, Feature |
Outdoor Scanning* | Yes （Multi-line laser mode enables scanning in lighting environments of up to 100,000 lux） |
3D Light Source* | 34 Blue Cross Laser Lines 15 Blue Parallel Laser Lines 1 Blue Deep Hole Single Laser Line 62 Line Blue Full-field Structured Light |
Fill Lights* | 12 Blue LEDs |
CPU | 4 core ARM, 2.0 GHz |
Built-in Chip Computing | Depth Computing |
Buttons | 4 |
Minimum PC Requirements* | macOS CPU: M2 Pro RAM ≥ 16GB Windows CPU: Intel i7 13th Gen or AMD Ryzen 7 5800 RAM ≥ 32GB GPU: NVIDIA GeForce RTX 3060 (8GB) Note: ① If you're unsure about the CPU configuration, please ensure that the CPU has cores≥8, threads≥16, and a base frequency ≥2.4GHz. ② Only in Laser Line Scanning modes, a dedicated graphics card is required for acceleration. AMD and MAC GPUs do not currently support acceleration. |
Recommended PC Requirements* | macOS CPU: M4 Pro or better RAM ≥ 24GB Windows CPU: Intel i9 12th Gen or better RAM ≥ 64 GB GPU: NVIDIA RTX 4060 (8 GB) or better |
Compatible Operating Systems | Windows 10/11 (64-bit), macOS 11.0 or better |
Output File Formats | PLY, OBJ, STL, ASC, 3MF, GLTF, FBX |
Ready to Print 3D Models | ✔ |
Wi-Fi | 6 |
Connector Type | USB Type-C to Type-C |
Power Requirements | DC 12V, 3A |
Scanner Weight | 450 g |
Dimensions (L × W × H) | 211 × 94 × 47 mm |
Special Object Scanning | Please use scanning spray when scanning transparent or specular surfaces in Laser Line modes. Using scanning spray is recommended when scanning transparent, black, specular, or highly reflective surfaces in Full-Field Structured Light modes. |
User Recalibration | Yes |
Power Bank Capacity | 5500 mAh ( When MetroY Ultra using the Battery Grip, the average battery life is approximately 2.5 hours.) |
Supported Accessories | Marker Block Kit, Mobile Kit (4th Gen), Dual-axis Turntable, Ball Plate |
Notes | 1. Precision is how close repeated measurements of the same object at a single angle are to each other. Accuracy is how close a measured value at a single angle is to the actual (true) value. They were both acquired in a controlled lab environment. Actual results might vary, subject to the operation environment. 2. Class 2M Laser Safety Tips: (1) The product uses a Class 2M laser projector. Avoid looking directly at it at close range! Please refer to the Class 2M laser standard document for details. (2) To avoid retina damage, don't look directly into the laser beam through optical instruments capable of magnifying it (e.g., telescopes, and camera lenses). (3) To prevent laser reflection, avoid placing reflective surfaces like mirrors or glass in the path of the laser beam. 3. This product has flashing lights, which may not be suitable for people with photosensitive epilepsy. 4. If you're unsure about the CPU configuration, please ensure that the CPU has cores≥8, threads≥16, and a base frequency ≥2.4GHz. |
